Description

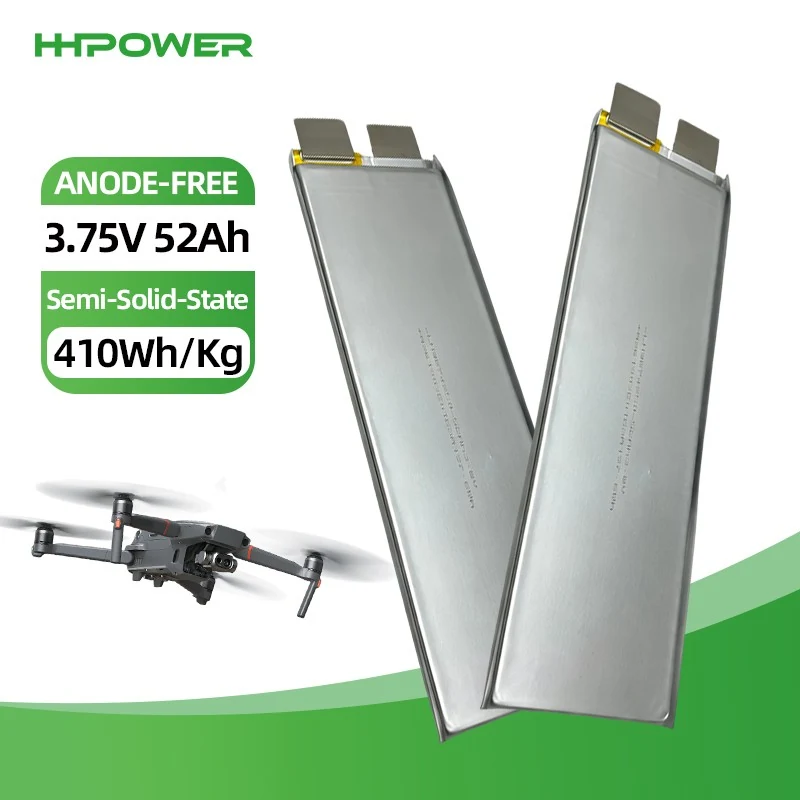

HHPOWER 3.75 V / 52 Ah anode-free semi-solid state lithium pouch cell with an energy density of 410 Wh/kg. It is built for UAV platforms where every gram of cell weight translates directly into flight time — long-range FPV airframes, inspection drones and VTOL aircraft.

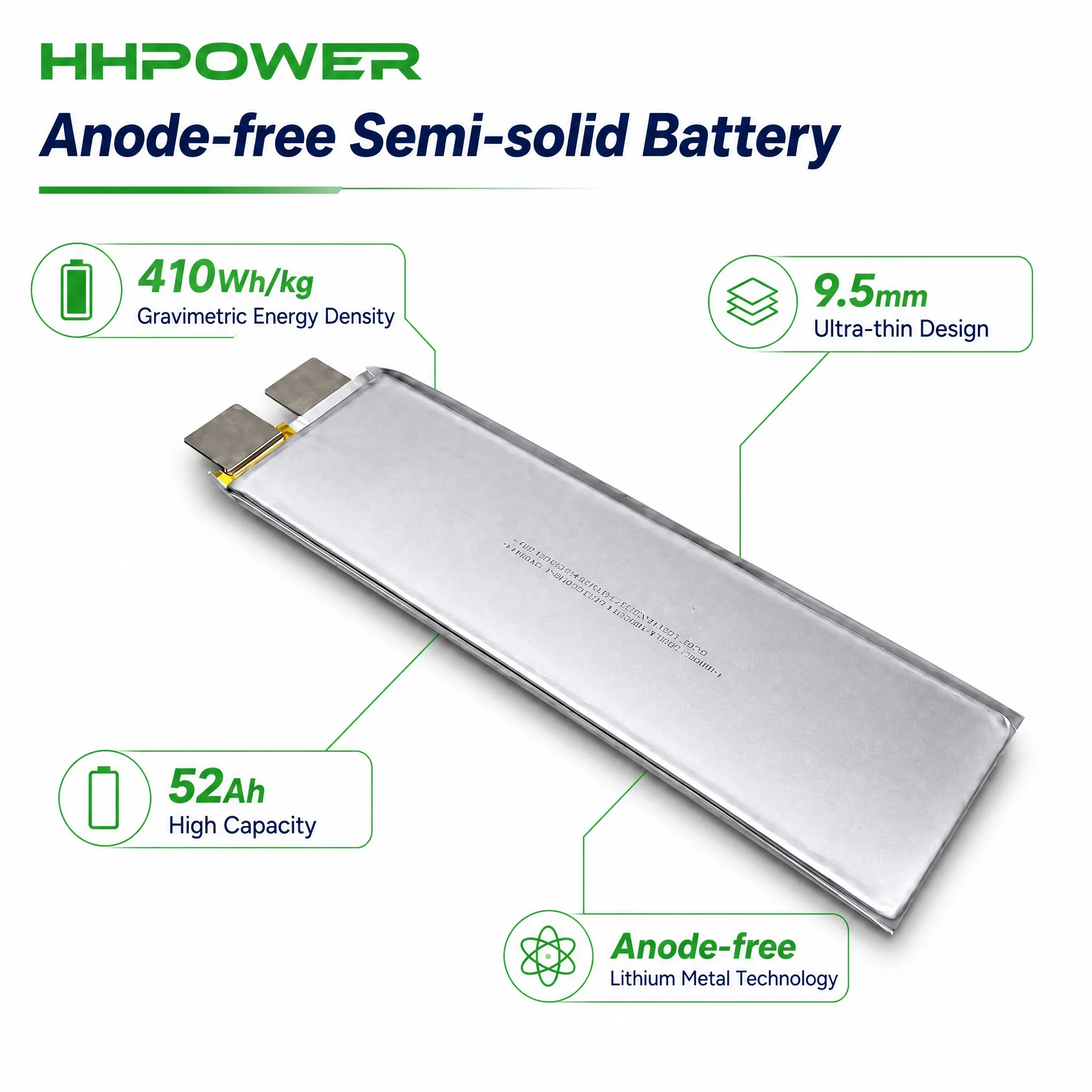

Why anode-free semi-solid state
- 410 Wh/kg energy density — 472 g per cell delivers 52 Ah, extending endurance without adding pack weight.
- 3C continuous discharge — sustains high-current climbs and aggressive throttle without voltage collapse.
- -25°C to 60°C operating range — stable output in cold-altitude and high-temperature field conditions.
- Certified for export — CE, RoHS, UN38.3 and MSDS documentation available for air and sea freight.
Applications
- Long-range FPV and racing drones
- VTOL and fixed-wing UAV platforms
- Aerial inspection, mapping and surveying aircraft
- Heavy-lift and specialty airframes requiring high energy density
Specifications
| Model | HHP-AF0001 |
| Cell type | Anode-free semi-solid state, pouch |
| Cathode material | LiNiMnCoO2 (NMC) |
| Nominal voltage | 3.75 V |
| Nominal capacity | 52 Ah (52,000 mAh) |
| Energy density | 410 Wh/kg |
| Max continuous discharge | 3C |

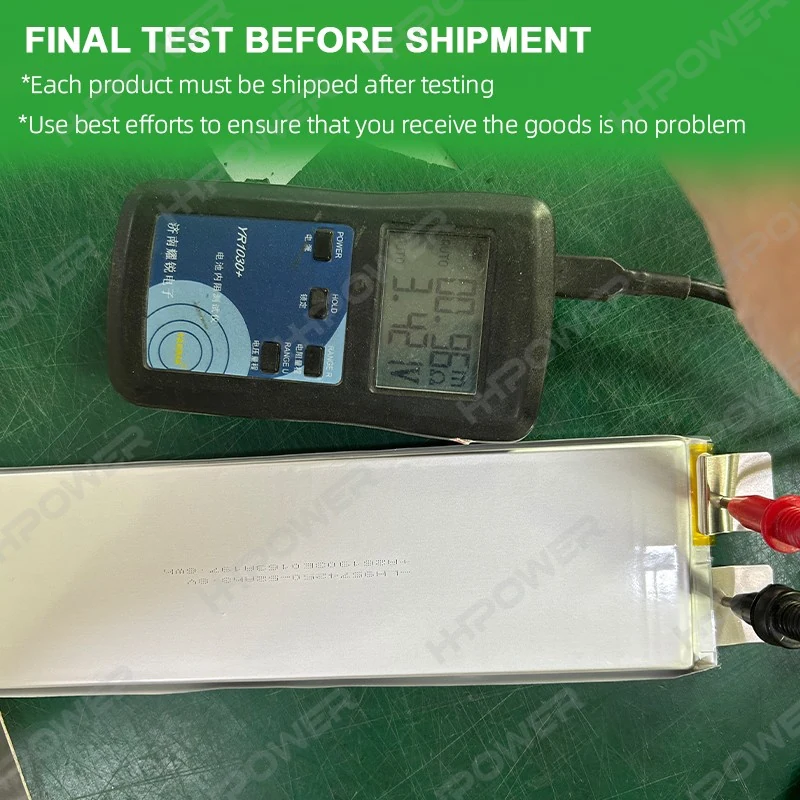

| Internal resistance | 0.96 mΩ |
| Charge cut-off voltage | 4.3 V |
| Cycle life | 20 cycles |
| Operating temperature | -25°C to 60°C |
| Cell weight | 472 g |

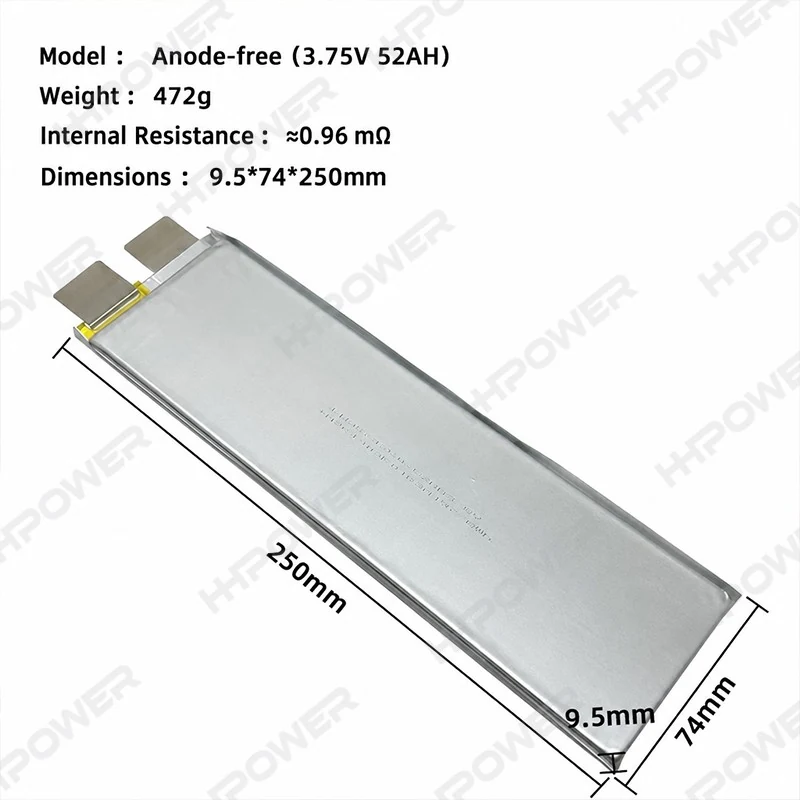

| Cell dimensions | 9.5 × 74 × 250 mm |
| Certification | CE / RoHS / UN38.3 / MSDS |
| Warranty | 12 months |
| Place of origin | Guangdong, China |
OEM / ODM customization
HHPOWER manufactures in-house and supports customization on capacity, cell dimensions, tab and connector configuration, and full battery pack assembly including BMS, housing and protection circuitry. Tooling and samples are available for both trial and mass production.
