Semi-Solid-State vs. Anode-Free Li-Metal Drone Batteries: A 2026 Buyer’s Guide
If you are specifying UAV batteries in 2026, the question is no longer “LiPo or Li-ion?” It is which next-generation chemistry you can actually qualify — and whether the numbers on the datasheet survive contact with a real mission profile. Semi-solid-state cells have moved from conference slides into commercial catalogues, anode-free lithium-metal designs are being relaunched specifically for drones, and the regulatory calendar in both the EU and the US has started to bite. Here is how to compare the three options without being sold a cell-level number that never reaches the aircraft.
What actually changed in 2026
Three things, and they matter more than any single spec sheet.
1. Semi-solid-state became the practical upgrade, not the experimental one. Industry surveys through 2026 consistently place semi-solid cells as the commercially mature step between high-rate LiPo and full solid-state, with all-solid-state production scale generally expected in the 2028–2030 window. For a program that needs to ship this year, semi-solid is the realistic option.
2. Anode-free lithium-metal went from lab record to product line. In September 2026 SES AI relaunched anode-free Li-metal cells aimed at drone applications, quoting 6.3 Ah / 24.3 Wh and 525 Wh/kg at cell level. Natrion launched uncrewed-systems product lines in May 2026 quoting above 450 Wh/kg. These are genuine engineering milestones — and they are cell-level figures, which is exactly where buyers get hurt.
3. The compliance clock started. The EU Digital Product Passport registry became operational on 20 July 2026, and the battery passport becomes mandatory for the relevant battery categories from 18 February 2027. Procurement teams that used to ask for a UN38.3 PDF now ask for structured data.
The three chemistries side by side
Indicative 2026 ranges. Treat them as a screening tool, then verify every line against the supplier’s own test reports — that step is the whole point of this article.
| Criterion | High-rate LiPo | Semi-solid-state | Anode-free Li-metal |
|---|---|---|---|
| Cell energy density | ~180–250 Wh/kg | ~280–350 Wh/kg | ~400–500+ Wh/kg |
| Continuous discharge | 15–30C typical | ~5C continuous, ~10C pulse | ~6C continuous |
| Nominal / charge cut-off | 3.7V / 4.2V | 3.6–3.7V / 4.2V | 3.75V / 4.3V (high-voltage variant) |
| Cycle life expectation | Mature, well characterised | Good — request 500-cycle data at your C-rate | Improving — the main selection risk |
| Relative cost per Wh | Lowest | Mid | Highest |
| Best fit | Acro, racing, heavy-lift, ag spray | Mapping, inspection, long-endurance VTOL | Range-critical ISR, payload-limited platforms |
Swipe the table horizontally on mobile to see all three chemistries.
The number that actually decides your flight time
Cell energy density is measured on a bare pouch. The aircraft flies on a pack. Between the two sit the BMS, nickel strips and busbars, wiring, connectors, thermal interface, enclosure, potting and label. A realistic derating is 15–25%.
So a 450 Wh/kg cell becomes roughly 340–380 Wh/kg at pack level — still a huge gain over a 200 Wh/kg LiPo pack, but not the number on the marketing page. When you compare suppliers, insist on the same basis: pack weight with enclosure, at the same C-rate, to the same cut-off voltage. A pack-level figure with the test conditions attached is worth ten cell-level records.
C-rate versus energy: pick the mission, not the datasheet
Energy density and continuous discharge pull in opposite directions. The practical rule we use with OEMs:
- Mission under ~20 minutes and power-limited (agricultural spray, heavy lift, aggressive FPV): stay on high-rate LiPo, or use a hybrid pack. Semi-solid will feel flat in the last third of the flight.
- Mission of 35–70 minutes and energy-limited (mapping, inspection, patrol, cargo VTOL): semi-solid wins on total work done per charge, and the 10C pulse headroom covers take-off and wind gusts.
- Payload is the bottleneck (long-range ISR, sensor-heavy platforms): anode-free Li-metal is the only chemistry that changes the aircraft’s design envelope — accept that you are an early adopter and budget for cycle-life validation.
Voltage windows break more integrations than chemistry does
Two details cause most field failures when teams switch from LiPo to next-generation cells:
- S-count arithmetic. A 6S LiPo is 22.2V nominal and 25.2V full. A 6S semi-solid at 3.6–3.67V nominal sits slightly lower, while a 3.75V/4.3V anode-free cell reaches 25.8V at full charge. Your ESC, BMS and charger must be rated for the higher cut-off, and your low-voltage warning must be re-set — 3.0V per cell on a LiPo profile is not the right floor for every lithium-metal design.
- Charger profiles. A drop-in swap into an existing LiPo charger is possible only if the charger’s per-cell termination voltage is adjustable. Otherwise you either undercharge (losing the energy density you paid for) or overcharge (a safety event). Ask for the recommended charge profile in writing.
HHPOWER’s own cells illustrate the spread: the 3.67V 22Ah semi-solid cell runs a 4.2V cut-off with 5C continuous / 10C pulse discharge, while the anode-free 3.75V 22Ah cell uses a 4.3V cut-off with 6C continuous discharge and 1.94 mΩ internal resistance. Same form factor family, two different electrical worlds.
Compliance and landed cost are now part of the spec
Documentation. A UN38.3 certificate on its own is not enough. The test summary must match the exact cell and pack configuration you are buying — cell model, capacity, series/parallel layout, and for packs, the enclosure. If your supplier’s report covers a different configuration, your freight forwarder can reject the shipment at the airport. Pair it with an MSDS valid for the current revision, IEC 62133-2 where applicable, and CE/RoHS declarations.
Europe. The Digital Product Passport registry went live on 20 July 2026 and the battery passport becomes mandatory from 18 February 2027 for the covered categories, with due-diligence obligations following later in 2027. If you sell into the EU, start collecting structured chemistry, carbon and supply-chain data from your cell supplier now — retrofitting it after the fact is expensive.
United States. The Section 301 increase on non-EV lithium-ion batteries took effect on 1 January 2026 at 25%, and trade sources report a further 12.5% action applying to China-origin entries from 24 July 2026, which would put the stacked rate for HTS 8507.60.00 near 40%. Rates move; confirm the current figure with your customs broker before you quote a landed price. What you should demand from any supplier is a quote that names the HS code and the duty breakdown, not a single FOB number.
A 10-point audit before you place the PO
Ask for these and read them. A supplier who can produce all ten in a week is a supplier you can scale with.
- Cell grading data — capacity and internal-resistance distribution for the actual production batch, not a golden sample.
- Cycle-life curve at your mission’s C-rate and depth of discharge, to 80% capacity.
- Discharge curve at your operating temperature, including the cold end if you fly below 0°C.
- Abuse test evidence — nail penetration, overcharge, over-discharge, external short.
- UN38.3 test summary naming the exact cell and pack configuration.
- MSDS at the current revision, plus IEC 62133-2 if you sell into regulated markets.
- 100% end-of-line pack test record — capacity, voltage, IR, and the pass/fail threshold used.
- BMS specification: protection thresholds, balancing strategy, communication protocol, and whether firmware can be tuned to your platform.
- Traceability: can they pull the cell batch for a pack serial number two years from now?
- Change-notification clause — written notice before any cell, BMS or process change on your part number.
Where HHPOWER fits
We manufacture semi-solid-state and anode-free pouch cells in Dongguan and build them into custom drone battery packs for UAV, eVTOL and robotics programs. In practice that means:
- Anode-free 3.75V 22Ah — 450 Wh/kg in a 186g cell, 6C continuous, 1.94 mΩ IR.
- Semi-solid 3.67V 22Ah — 290 Wh/kg, 5C continuous / 10C pulse, −25°C to 60°C window.

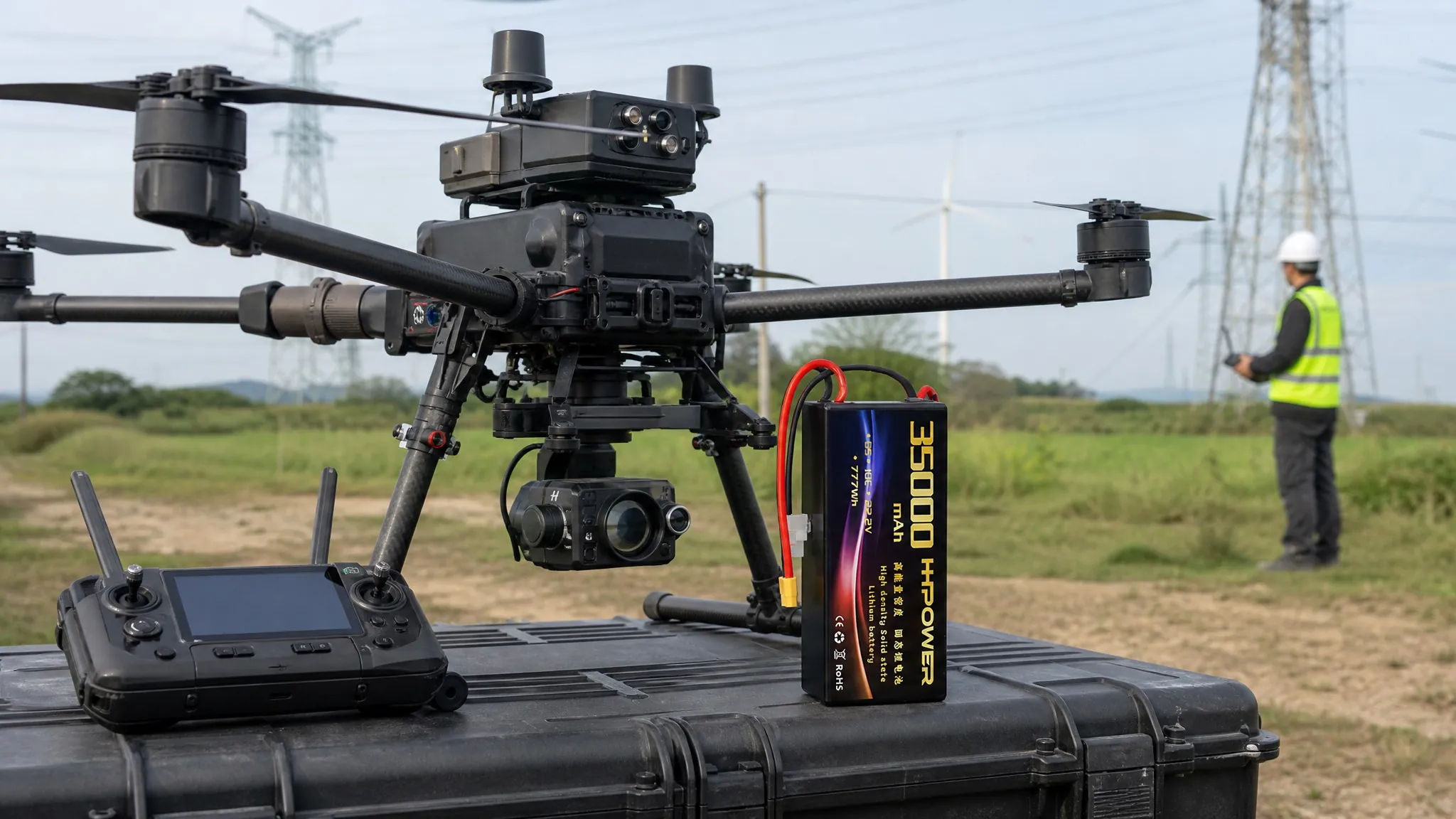

- Custom packs — 6S 22.2V from 8Ah to 50Ah, with configurable C-rate, connectors (XT30/XT60/XT90), PVC and labelling, built from A-grade graded cells.
Every shipment leaves with CE, RoHS, UN38.3 and MSDS documentation matched to the configuration you ordered. If you are evaluating a chemistry switch this quarter, send us your mission profile — voltage, capacity, continuous and peak current, flight time and operating temperature — and our engineers will come back with a pack-level proposal rather than a cell datasheet.
Request a pack-level quote → | See our OEM/ODM process
FAQ
Is semi-solid-state the same as solid-state?
No. Semi-solid cells retain a small liquid or gel fraction at the interface and are produced largely on modified lithium-ion lines, which is why they are commercially available now. All-solid-state cells remove the liquid entirely and are still working through interface resistance, stack pressure and yield issues at scale.
Can I charge a semi-solid or anode-free pack with my existing LiPo charger?
Only if the per-cell termination voltage is configurable. A 3.75V/4.3V cell needs a different full-charge voltage than a standard 4.2V LiPo. Confirm the profile with the cell supplier before the first charge.
What energy density should I expect at pack level?
Plan for 15–25% below the cell figure once BMS, wiring, connectors, enclosure and potting are included. Ask for the pack-level number with test conditions rather than accepting the cell-level headline.
What documents do I need to import next-generation drone batteries in 2026?
At minimum a UN38.3 test summary matching your exact configuration, a current MSDS, and CE/RoHS declarations; add IEC 62133-2 for regulated markets. For the EU, begin collecting battery-passport data ahead of the 18 February 2027 deadline.
Sources
- SES AI anode-free Li-metal cells for drones, 525 Wh/kg cell-level — Unmanned Systems Technology, September 2026.
- Natrion uncrewed-systems battery lines, anode-free cells above 450 Wh/kg — Natrion, May 2026.
- Batteries and the Digital Product Passport: registry operational 20 July 2026, passport mandatory 18 February 2027 — European Commission.
- Section 301 four-year review: non-EV lithium-ion batteries to 25% from 1 January 2026 — USTR / trade-law summaries; stacked-rate figures per broker analyses, verify with your customs broker.
